Everything you need to get your Graflok Slide-Lock compatible 4x5 Camera up and running as a vintage-style digital camera.
Use this adapter to harness the power of your smartphone to capture digital stills and video with the look and feel of 4x5 photography with most Graflok compatible 4x5 cameras from the 1950s onwards.
Please note that this Graflok Universal version of the adapter has many advantages when shooting digitally, but was not primarily designed as a viewfinder for use when shooting film the way the original camera-specific adapters were, listed elsewhere...
Camera-Specific Versions: Attaches to your existing spring-mounted ground-glass/film-back like any other viewfinder attachment, replacing only the pop-up shade/hood. To shoot film you simply slide in a film-holder under the ground-glass as you normally would. The mounting system is only as secure as your camera's film holder mechanism, and is those more prone to light leaks and instability.

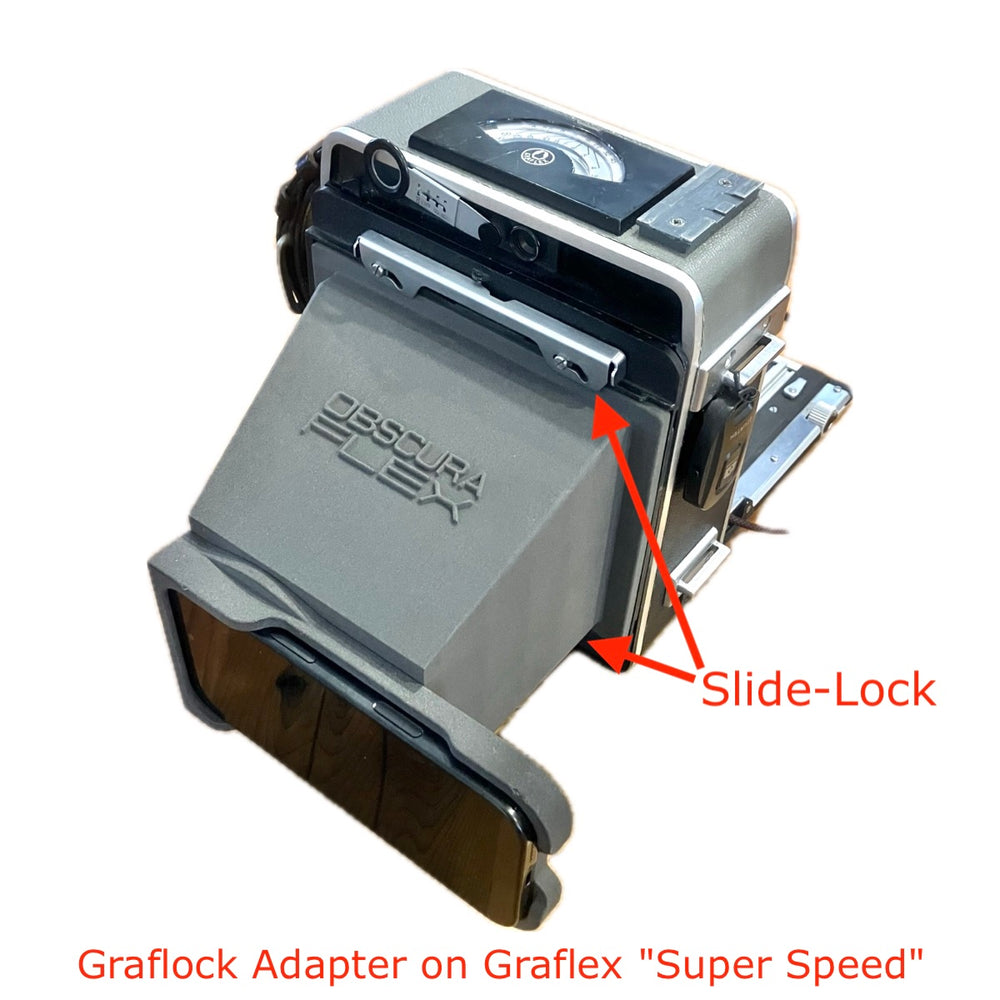

THIS Graflok VERSION: Replaces the entire ground-glass/film-back assembly of your camera and locks securely into place with the Graflok style Slide-Locks. This does not allow for the easy insertion of film-holders the way most native spring-loaded film-backs do. To shoot film the adapter must be removed and a film back installed. This approach makes the attachment more secure, eliminates light leaks, and reduces the overall weight of the system, but is most useful as a digital system.
This generic version of the ObscuraFlex adapter is designed to fit any 4x5 camera that's equipped with standard Graflok style "slide-lock" mounting mechanism as patented by Graflex in 1949.

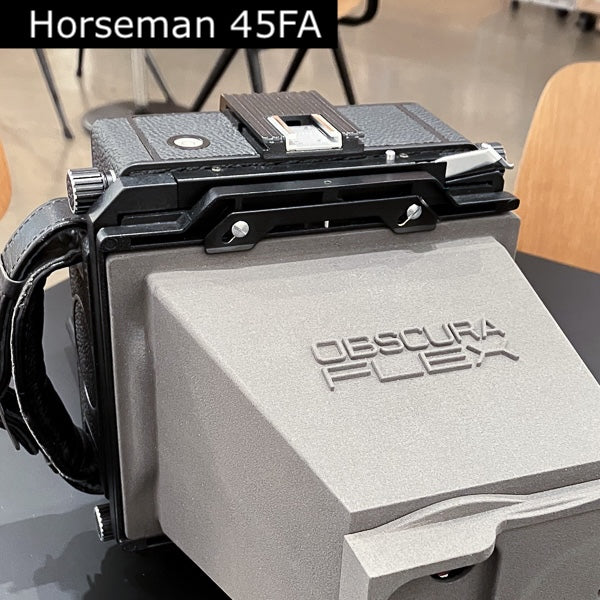

I don't have the resources to confirm the compatibility of every 4x5 camera that claims to be "Graflok Compatible" or even "Graflock" but many manufacturers introduced compatible Slide-Lock mechanisms. Some compatible models I am aware of include: Horseman 45FA, Toyo 45A/AX, Wista 45N, Intrepid 4x5, Linhof Technica IV & V, Graflex Speed Graphic, Super Speed, Crown Graphic, etc.
Check your camera carefully before ordering and compare with the photos and these measurements:
Flange Dimensions: 120mm (4.73in) x 156mm (6.14in)
Flange Thickness: ~6mm (0.24in)
Any camera that is proven compatible with Graflok "Slide-Lock" style accessories such as the Polaroid 545 Land FIlm Holder Back, LomoGraflok Instax Back, FotoDiox Stitcher Backs, 120 roll backs, etc should be able to accept this adapter.
You probably know your camera better than I do, but if you still have questions after taking a close look at your camera, and comparing it to the photos here, feel free to email me via the contact page and I'll do my best to help.

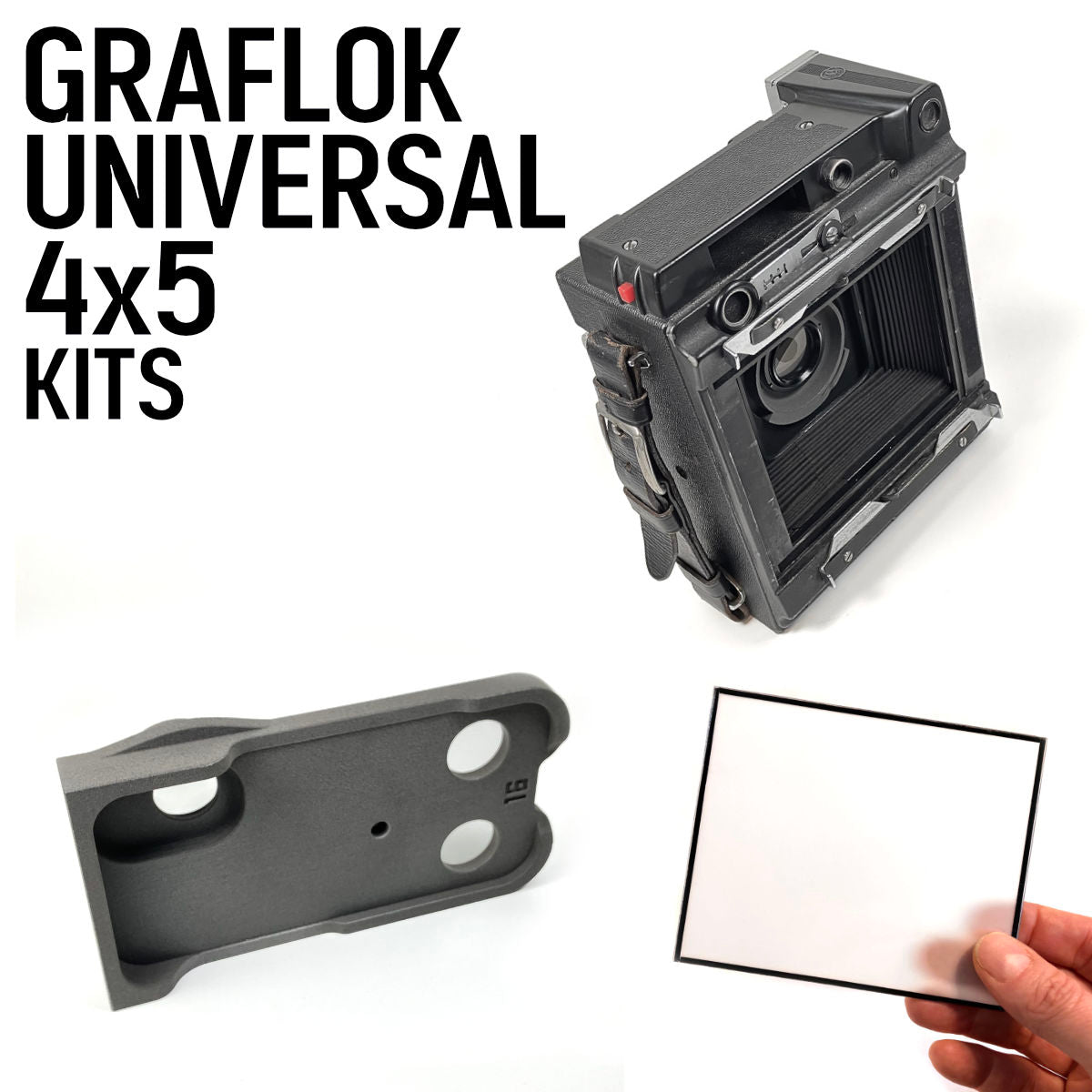

Kit Includes:
- ObscuraFlex™ Adapter for Graflok Slide-Lock Cameras
- Twist-Lock Phone Cradle (now includes premium optics where appropriate)
- ObscuraFlex™ Focusing Screen (Select 127mm Graflok Version)
